Marine Mooring Bollards
Marine Mooring Bollards
Features: General purpose applications up to 200 tonnes.suitable for steep rope angles
Technology Data:The safe factor of bollard Is 3 time.The face angle of cable:-45~+45°(Vertical),0~180°(Horizontal).
The paintsystem: Depend on the need of dock .the color is incloud black,yellowand other .
Material Type: Cast Iron ,Cast Steel and Cast SG Iron

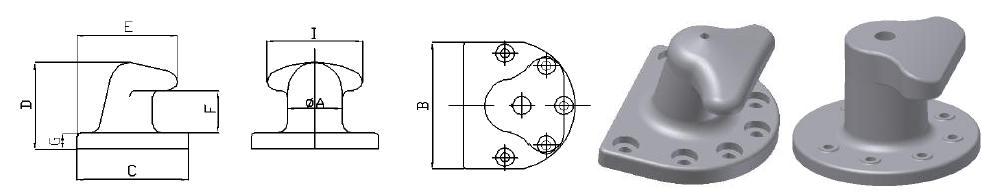

T Head Bollards
Capacity (T) |
Type | A | B | C | D | E | F | G | I | No.Bolts |
10 | SBA10 | 160 | 350 | 310 | 240 | 290 | 127 | 45 | 250 | 5 |
15 | SBA15 | 170 | 400 | 350 | 270 | 330 | 135 | 50 | 300 | 5 |
20 | SBA20 | 190 | 484 | 410 | 290 | 360 | 145 | 50 | 360 | 5 |
30 | SBA30 | 250 | 600 | 540 | 375 | 480 | 190 | 60 | 460 | 5 |
50 | SBA50 | 300 | 600 | 651 | 480 | 570 | 245 | 75 | 600 | 5 |
60 | SBA60 | 300 | 800 | 651 | 490 | 570 | 245 | 80 | 600 | 5 |
75 | SBA75 | 340 | 800 | 720 | 510 | 620 | 260 | 85 | 650 | 6 |
100 | SBA100 | 370 | 1000 | 810 | 600 | 710 | 306 | 100 | 750 | 7 |
125 | SBA125 | 375 | 1000 | 810 | 610 | 710 | 306 | 100 | 750 | 7 |
150 | SBA150 | 430 | 1080 | 900 | 670 | 830 | 350 | 110 | 800 | 7 |
200 | SBA200 | 460 | 1080 | 930 | 690 | 850 | 320 | 125 | 800 | 7 |

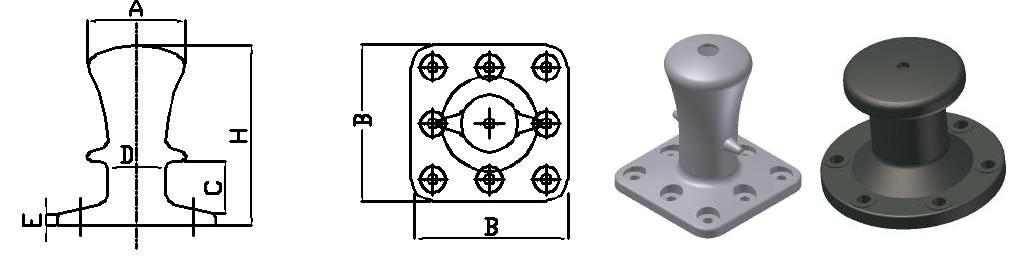

Single Bit Bollards
Capacity(T) | Type | A | B | C | D | E | No.Bolts |
20 | SBD20 | 400 | 660 | 290 | 260 | 65 | 4 |
30 | SBD30 | 400 | 660 | 290 | 260 | 65 | 4 |
50 | SBD50 | 400 | 600 | 200 | 300 | 70 | 4 |
75 | SBD75 | 440 | 700 | 340 | 330 | 85 | 4 |
100 | SBD100 | 540 | 900 | 365 | 350 | 95 | 8 |
150 | SBD150 | 610 | 900 | 340 | 420 | 120 | 8 |
200 | SBD200 | 680 | 900 | 350 | 480 | 120 | 8 |
Double Bit Bollards
Capacity(T) | Type | A | B | C | D | E | F | G | H | No.Bolts |
20 | DBA20 | 685 | 370 | 610 | 150 | 254 | 50 | 369 | 394 | 8 |
30 | DBA30 | 825 | 420 | 725 | 180 | 290 | 58 | 445 | 451 | 8 |
50 | DBA50 | 945 | 455 | 825 | 200 | 330 | 65 | 510 | 508 | 8 |
75 | DBA75 | 1205 | 522 | 1040 | 255 | 405 | 75 | 650 | 622 | 10 |
100 | DBA100 | 1390 | 635 | 1200 | 305 | 457 | 82 | 760 | 698 | 10 |
125 | DBA125 | 1525 | 675 | 1320 | 330 | 500 | 85 | 840 | 752 | 10 |
150 | DBA150 | 1650 | 720 | 1420 | 355 | 533 | 90 | 910 | 797 | 10 |
175 | DBA175 | 1875 | 840 | 1650 | 406 | 610 | 105 | 1067 | 909 | 10 |
200 | DBA200 | 2030 | 860 | 1750 | 432 | 660 | 115 | 1130 | 987 | 10 |

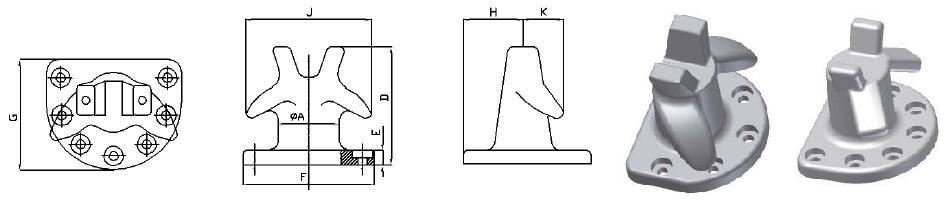

Twin Horn Bollards
Capacity(T) | Type | A | D | E | F | G | H | J | K | No.Bolts |
10 | DBY10 | 166 | 362 | 55 | 350 | 305 | 102 | 382 | 115 | 5 |
15 | DBY15 | 178 | 400 | 65 | 400 | 350 | 130 | 420 | 127 | 5 |
20 | DBY20 | 203 | 467 | 70 | 485 | 405 | 165 | 410 | 165 | 5 |
30 | DBY30 | 254 | 530 | 75 | 610 | 570 | 265 | 505 | 185 | 5 |
40 | DBY40 | 300 | 617 | 75 | 610 | 610 | 305 | 610 | 210 | 5 |
50 | DBY50 | 300 | 598 | 85 | 762 | 660 | 280 | 560 | 230 | 5 |
60 | DBY60 | 300 | 604 | 90 | 762 | 660 | 280 | 560 | 230 | 6 |
75 | DBY75 | 355 | 742 | 95 | 850 | 725 | 305 | 760 | 240 | 7 |
100 | DBY100 | 360 | 774 | 115 | 965 | 840 | 356 | 760 | 240 | 7 |
150 | DBY150 | 430 | 850 | 115 | 1015 | 915 | 380 | 840 | 280 | 7 |
